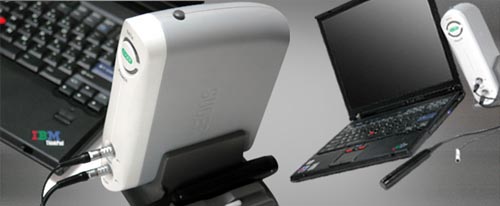

OPHTHALMIC A/B SCAN SW-2100 PROTABLE USB-INTERFACE
FEATURES
Sealed, frequency-adjustable, magnetic driven noiseless B scan probe
Super gain of 105dB, with vitreous body intensify function
Save 100 frames of images during 10 seconds before freezing. Loop one by one or continuously
USB port, portable and compact, infinite expansion
Ophthalmic A/B Scan Image Workstation on WIN XP platform
Can adjust the gain of frozen image to obtain the best image
Automatically save 100 frames of images during 10 seconds before freezing. Loop one by one or continuously, and it is convenient for doctors’ diagnosis
Broad spectrum, sealed, frequency-adjustable, magnetic driven noiseless B scan probe
Multiwindow display + false color
Multifunctional background process, SW-2100 provides many pictures of the site of eye, it also provides expert dictionary, and you can choose the standard terminology of ultrasonic images.
Bio-measurement technique, sensitive data acquisition, 10 scanning results for each eye.
Three lens for each eye for selection: folding lens; anterior-chamber lens; posterior-chamber lens. You can select the suitable lens material and degree
SPECIFICATIONS:
A Scan
Probe: 10MHz solid probe,inner luminated
Depth: 16-40mm
Precision: 0.05 mm
Eye mode: Phakic/ Aphakic/ Pesudo
IOL formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS
Stat. Calculation: average and standard deviation
Transmit speed: differert speed in different part
Store: 10 Scanning results for each eye
B Scan
Probe: 10MHz Magnetic driven noiseless
Resolution: Lateral ≤0.3mm；Vertical≤0.2mm
Gain: 30-105dB
Angle: 53°
Gray scale: 256 shades
False color: 7 kinds of colors
Measure mode: 4 distances, 2 angles, perimeter and area
Case report: PDF format case report archiving
Movies: 100 frame movie loop, AVI ZIP JPG format image output
