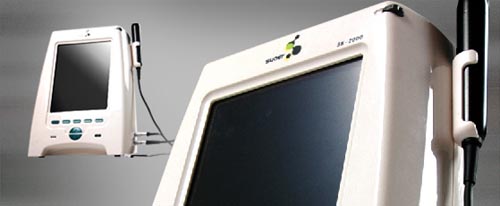

OPHTHALMIC A/B SCAN SW-2000 TAB TOUCH SCREEN
FEATURES
Advanced technique, powerful functions, it can meet different clients’ demands.
Origin 10MHz A scan solid probe imported from U.S.A. is able to meet the precision of 0.04 mm and detecting range of 0mm-40mm, and B scan probe is 10MHz magnetic driven noiseless probe.
SW-2000 is a multifunctional, affordable, high cost performance product due to its storage of 8 frames of images, its 4 kinds of display mode and its competitive price.
Technology enlarge our scope.
Digital signal
Can connect with video copying-press or workstation, more convenient.
Image grey achieves 256 shades; fine definition; the image signal with strong anti-interference capacity
Can analyze、measure、calculate、compare、amplify or minify image, also the images can be saved forever in computer.
Eye mode: NORMAL/ DENSE/ APHAKIC/ PMMA/ SILICON/ ACRYLIC
Curve freeze: manual and auto recognition freeze
Sonic speed: adjustable
Output:
A scan: output the IOL calculate table and A scan curve.
B scan: high definition B scan image
SPECIFICATIONS:
A Scan
Probe: 10MHz solid probe,inner luminated
Precision: 0.04 mm
Range(AL): 0mm-40mm
Gain: 30dB-105dB
Measure range: Anterior chamber, lens, vitreous, length, auto calculate, their average and analysis statistic
IOL Formula：SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS
Curve freeze: manual and auto recognition freeze
B Scan
Probe: 10MHz Magnetic driven noiseless
Resolution: Lateral ≤0.2mm；Vertical≤0.4mm
Geometric location precision: Lateral≤10%；Vertical≤5%
Depth: 0mm-60mm
Angle: 53°
Gray scale: 256 shades
Display mode: B/B+A/B+B
Measure method: double cursor distancemeasure
