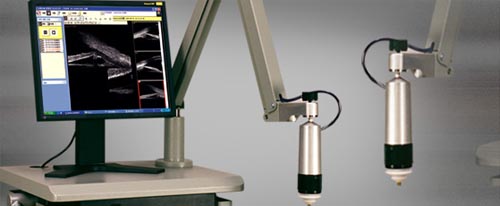

USB OPHTHALMIC A/B SCAN SW-3200 KINSCAN
FEATURES
Linear scanning obtains distortionless, fine-definition and high-resolution images of the front of eye.
4 liberty articulated arm, with precise locating system
50MHz linear scanning ultrasound microscope probe
High gain, high SNR, wide dynamic range
WINXP platformed ultrasound microscope workstation
Images output: format of avi, zip and so on, windows browser could be inserted whenever you like
Case output: provide PDF format case report with validity, while auto backup at the same time for future check up
Operating system:Windows XP, include USB 2.0 and memory is 512MB
Capacity of image memory: 80G for hard disk, and can be expanded infinitely by CD.
Save 100 frames of images during 10 seconds before freezing. Loop one by one or continuously.
SW-3200 Kinscan has more than 20 kinds of pictures of the site of eye in order to diagnose precisely.
Elaborate expert dictionary
4 liberty mechanic armed with precise locating system
high gain, high SNR and wide dynamic range
SPECIFICATIONS:
Probe Frequency: 50MHz
Vertical Resolution: 50 um
Lateral Resolution: 50 um
Precision of geometric position：Vertical≤ 5%，Lateral≤10%
Gray scale: 256 shades
Scanning: linear scan, 4 liberty articulated armed with precise locating system, cornea protection, safty alarm
Gain range: 30-105dB
SNR: 100dB
Image Display: black&white and all kinds of false colors
Calculate and measure: 4groups of distance, 2 groups of angles, area, perimeter
Power: AC 220X (1±10%) V, 50 X (1±2%)Hz
