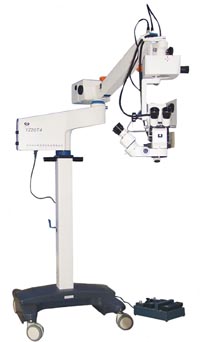

YZ20T4 OPERATION MICROSCOPE

You can select a product or information you want from the arrow above and you click “Go” or you can use the search above to get any information or product.

·Characteristics

· Five-step magnifications for main microscope, three-step magnifications for assistant microscope.

· Lens made of imported glass from Germany can reduce the optical aberration.

· All of the lens are multi-coated, mildewproof and anti-reflection

· Equipped with three Objectives and being applicable to ophthalmology, orthopaedics, surgery.

· Oblique illumination can be used for slitting and slitting width is adjustable.

· X/Y movement can be automatically centered.

· Inner Beam Splitter is mounted and can be connected to other outer displays.

·Specification

Eyepiece Magnification

12.5×/18B

Adjustable Dioptor

±5D

Adjustable range for Pupil Distance

50mm～70mm

Illumination Source

12V/100W，Halogen Lamp

Illumination Type

6°+0°coaxial illumination and 25°oblique illumination. Oblique illumination can be used for slitting and the slitting angle can be rotated 360°

Coaxial Illumination

≥30000lx

Oblique Illumination

≥15000lx

Reaching Range of Arm

1040mm

Adjustable Vertical Range

850mm～1350mm

Fine Focusing Speed and Range

≤2mm/s，≥50mm

Speed for X/Y and Range

≤2mm/s，50mm×50mm

Voltage

AC220V±10%/ 50Hz±1Hz、AC110V±10%/60Hz±1Hz

Power

380VA

Fuse

AC250V T4A、AC125V T8A

Electrical Safety Standard

Conform to Standard IEC 601-1.Class1Type B

Whole Packing Volume

0.727m3

Carton Number

Total Weight

210kg

Objective/Working Distance（mm）

Magnification for Main Microscope

Magnification for Assistant Microscope

Diameter of Field(for Main Microscope) （mm）

f200/190

Φ58

Φ38

10X

Φ23

16X

Φ14

25X

Φ9

f250/240

3.2X

Φ72

Φ46

Φ29

12.8X

Φ28

20X

Φ12

f300/290

2.7X

Φ87

4.2X

Φ55

6.7X

Φ34

11X

Φ22

17X

Φ14

Optional Accessory

· Teaching tube.

· 1/3” CCD camera, CCD Adaptor and relevant Cables.

YZ20T4 OPERATION MICROSCOPE(Multi-sections)
