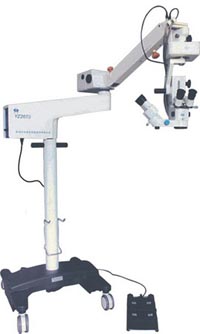

YZ20T9 OPERATION MICROSCOPE

You can select a product or information you want from the arrow above and you click “Go” or you can use the search above to get any information or product.

YZ20T9 OPERATION MICROSCOPE ( OPHTHALMOLOGY)

·Characteristics

· Five-step magnifications for main microscope, three-step magnifications for assistant microscope; Fine focusing for assistant microscope keeps the same clearness as main microscope.

· Lens made of imported glass from Germany can reduce the optical aberration.

· X/Y movement can be automatically centered.

· Independent electrical box has automatical diagnosis function , which is very convenient for repair if necessary.

·Specification

Eyepiece Magnofication

12.5×/18B

Objective

200mm

Working Distance

190mm

Magnification for Main Microscope

4×、6×、10×、16×、25×

Magnification for Assistant Microscope

6×、10×、14×

Diameter of Field

Φ58mm、Φ38mm、Φ23mm、Φ14mm、Φ9mm

Adjustable Dioptor

±5D

Adjustable range for Pupil Distance

50mm～70mm

Illumination Source

12V/100W，Halogen Lamp

Illumination Type

6°+0°coaxial illumination and 26°oblique illumination which can be adjusted for slitting and the slitting width is adjustable.

Coaxial Illumination

≥30000lx

Oblique Illumination

≥15000lx

Reaching Range of Arm

1240mm

Adjustable Vertical Range

850mm～1350mm

Fine Focusing Speed and Range

≤2mm/s，≥50mm

Speed for X/Y and Range

≤2mm/s，50mm×50mm

Voltage

AC220V±10%/ 50Hz±1Hz、AC110V±10%/60Hz±1Hz

Power

330VA

Fuse

AC250V T4A、AC125V T8A

Electrical Safety Standard

Conform to Standard IEC 601-1.Class1Type B

Whole Packing Volume

0.786m3

Carton Number

Total Weight

213kg

· Optional Accessory

· Teaching Tube, Beam Splitter.

· 1/3” CCD camera, CCD Adaptor, Beam Splitter and relevant Cables.
