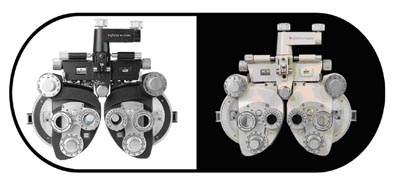

KF-Z3000 View Tester                                                                             CE









Adopting overall concentrated operation and large scale and improving performance.



Automatical interlock between cross -cylinder lens and lens coordinates.





Specifications：





● Sphere power: Range: +16.75 to -19.00D



Step: 0.25D



● Cylinder power: range: 0.00D to -6.00D



( 0.00D to 8.00D with additional lens of-2.00D)



Step: 0.25D



● Cylinder axis: 0 to 180°，5°steps



● Cross Cylinder: ±25 Diopters



● Cross-cylinder lens: ±0.25D



● Rotary prisms: 0△ to 20△,1△ steps

● Auxiliary lens dial:  ［O］-Open aperture (two positions)

                   ［R］-Retinoscopic lens,+1.50D

                   ［P］-Polarizing lens,（45°left eye，135°right eye）

                    ［WMV］or［RMV］-Maddox rod,vertical

                                        white — left eye

                                        Red — right eye

                        ［WMH］or［RMH］-Maddox rod,horizontal

                                        white - left eye

                                        Red - right eye

                        ［GL］- Green Lens

                        ［RL］-red Lens

                        ［+.12］- +0.12D Sphere

                        ［PH］- Pin hole

                        ［10△I］or ［6△U］-10△ base-in-left eye

                                            6△ base-up-right eye (Dissociating prisms)

                        ［±.50］-±0.50 fixed cross cyliner

                        ［OC］- Occluder

● P.D.adjustment: 48-75mm,1mm steps

● Standard Accessory : One near point card with holder and rod,dust cover,face shield and case for lenses.

● Standard Accessory lens:Two-.12D and -2.00 cylinder lenses. Two plano lenses for sealing front opening

● Dimensions: 345×350×155(mm)

● Net weight: Approx.4.5Kg
