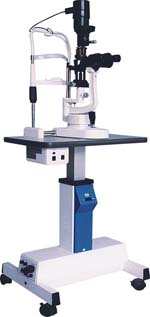

YZ5J Slit Lamp Microscope                                                                 CE+FDA









Characteristics

·The optical lens are made of glass imported from Germany.

·All the lens are multi-coated, mildewproof and anti-reflection..

·Two-step magnifications, 10x, 16x for choice.





·Specification





Microscope Type





Converging Stereoscope





Magnification





three-step magnifications





Eye piece





10x





Total Magnification and Diameter of Visual Field(mm)





10x(Φ18)16x(Φ14.5)





Adjustable Range of Pupil Distance(mm)





 55~82





Adjustable Diopter





 ±6D





Slit Width(mm)





 0-9 adjustable





Slit Height(mm)





 1~8 adjustable





Slit Angle





0~180°





Slit Inclination





5°、10°、15°、20°





Light Spot Diameter (mm)





Φ9、Φ8、Φ5、Φ3、Φ2、Φ1、Φ0.2





Filter





heat absorption , grey ,red free , cobalt blue





Illumination Bulb





 12V / 30W halogen bulb





Voltage/frequency





 AC220V±10%/60Hz±1Hz. AC110V±10%/50Hz±1Hz





Power





 58VA





Electrical Safety Standard





Conform to Standard IEC 601-1.Class1Type B





 Whole Packing Volume





 0.30m3





 Carton Number





 2





 Total Weight





51kg





Accessories

· Applanation Tonometer (R type and T type), Measuring Eyepiece.
